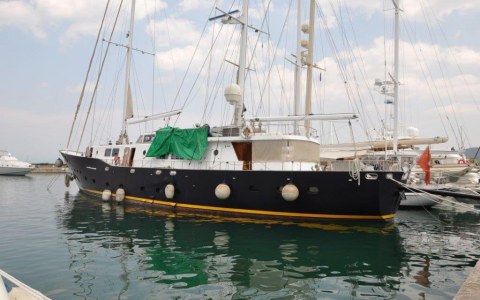

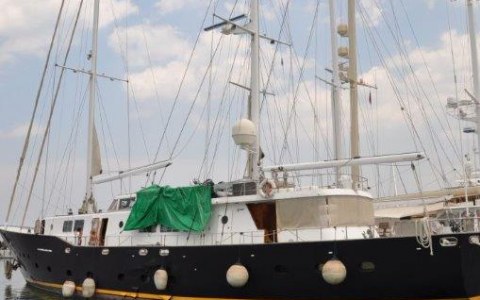

Sturdy and seaworthy sailing explorer. A real blue water yacht built by Codecasa with their customary care that already made several times the round the world tour.
She now deserves some lovely cares from a new owner.
YACHT DETAILS
General Specifications
Builder: Ccodecasa
L.o.a.: 35.00 m
Beam: 7.60m
Draft: 3.50 m
Cruise Speed: 10 kn @ 1200 RPM
Max Speed: 13 knots @ 1700 RPM
Year: 1980 Range: 7.000 nm
Type: Sailing explorer
Additional infornation
Hull Material: Steel
Hull Designer: Ugo Costaguta

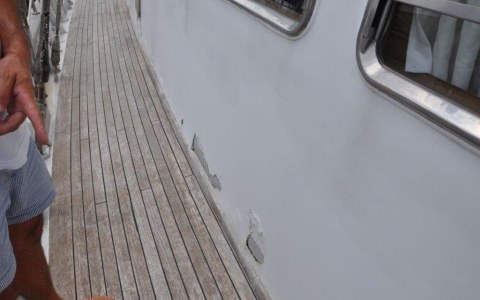

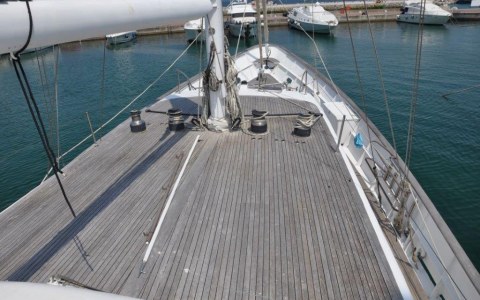

Deck Material: Teak
Range: 7,000 Miles
Ext Designer: Ugo Costaguta

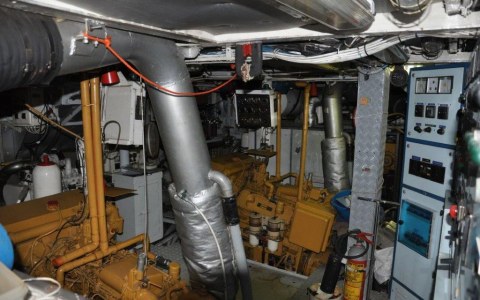

Engines power: 2 x 370 hp
Engines Brand and Model: Caterpillar 8V3408
Engines hours: 10.000
Staterooms: 5
Sleeps: 12
Heads: 5
Crew Quarters: 3
Crew Berths: 5
Classifications: American Bureau of Shipping

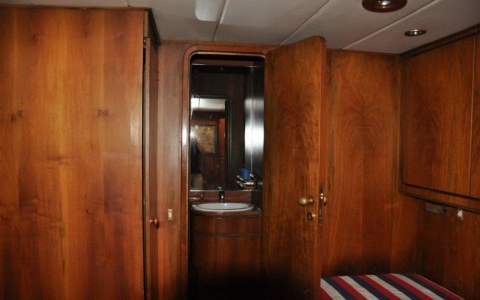

Accomodation

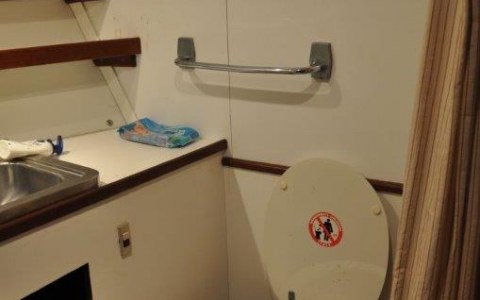

1 double master cabin with ensuite bathroom and bathtub
2 double guest cabins + 2 twin guest cabins with ensuite bathrooms each
1 Pullman berth in each twin guest cabin
Crew Quarters
1 single captain’s cabin, 1 single engineer’s cabin, 1 single chef’s cabin, 1 triple crew cabin

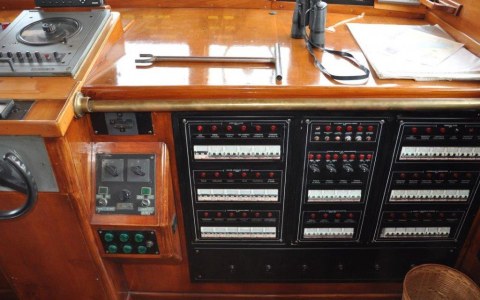

Electrical System
Electrical Supplies 380V/220V/24V-50Hz
Batteries 4 x domestic, 4 x engine, 5 x generator, 2 x radio

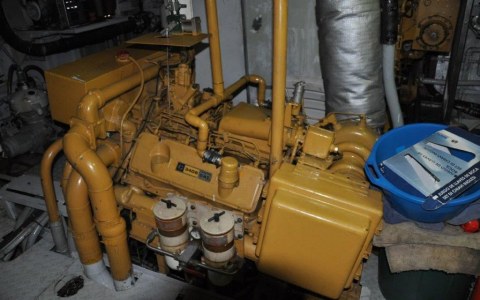

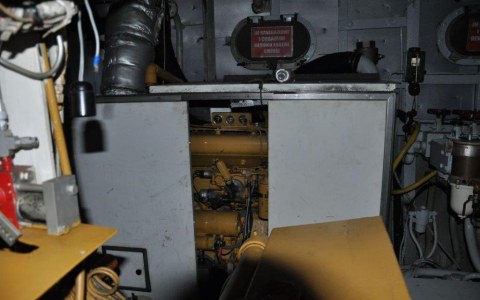

Generators 2 x 50 kW Caterpillar, 1 x 75 kW Cummins
Safety and Fire Protection
Safety: As per ABS regulations, EPIRB transmitter, 4 x 6 person liferafts, lifejackets in all cabins
Fire Fighting: Automatic CO2 system in engine room, manual extinguishers in all cabins
Alarms: Bilge alarms, fire alarms, porthole alarms
Security: CCTV monitoring system (2 cameras in engine room, 1 on aft deck)
Ancillary Machinery

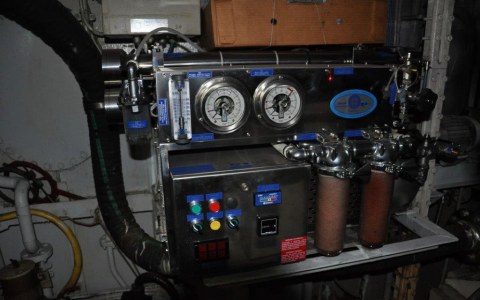

Water Makers Idromar (220 liters/hour)
Air Conditioning Frigomar (two compressors)
Bow Thruster hydraulic
Fuel Filtration Alfa-Laval
Oil Filtration Racor filters

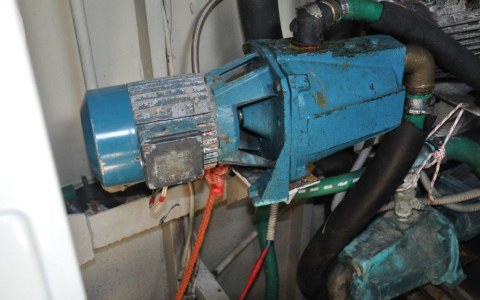

Bilge System 2 x Guareschi & Ramaciotti 380V manual bilge pumps, 3 x automatic bilge pumps
Propellers 2 x Nibral 4 blade
Communication Equipment
VHF : Sailor
SSB : Sailor
SATCOM : Navisystem satellite TV receiver with decoder
Cellular : GSM phone and fax line

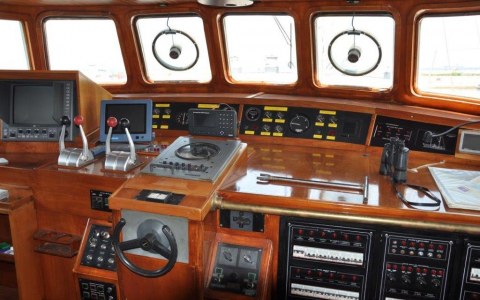

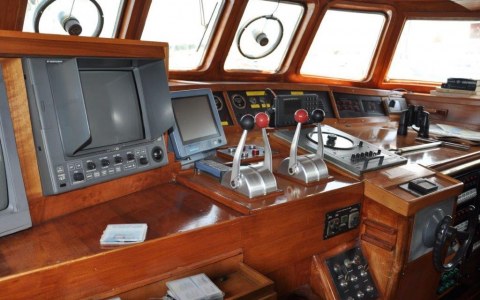

Navigation
Furuno 90NM double-band radar with ARPA
Decca 90NM radar
Philips Mk10 DGPS
Koden KGP-912 GPS interfaced with 10-inch Koden Genesis color chart- plotter (C-Map)
Anshutz gyrocompass
Anshutz autopilot
AEG stabilizer controls
Wind velocity and direction indicator
Engine instrumentation and alarm (RPM, oil pressure, oil temperature, water temperature, gearbox oil pressure)
Generator instrumentation and alarm (oil pressure, water temperature)
Speed log
Taiyo TF-721 weatherfax
Fuso echosounder/fish-finder
Fuel level indicators
Water level indicators

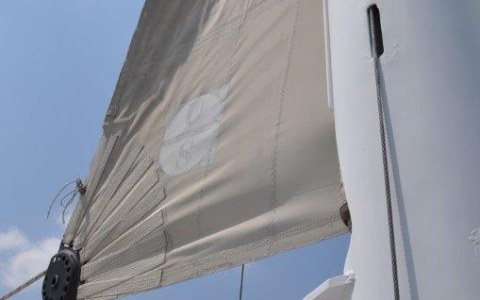

Sails and Rigging
Complete set (450 m2)
Deck Equipment

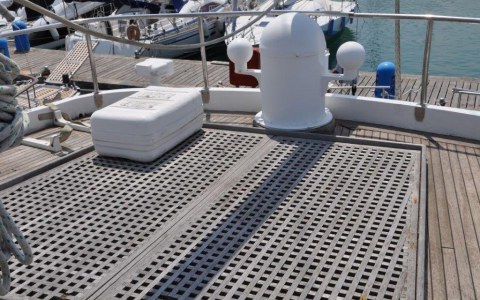

Deck Equipment 2 x Sanguinetti windlasses, 2 x Sanguinetti aft capstans
Ground Tackle 2 x 180kg anchors on 16mm chain (175 and 150 meters)
Cranes/Davits/Passerelles 1 x 1000kg tender crane, hydraulic bathing ladder, Sanguinetti hydraulic gangway, hydraulic lifting platform
Galley/Laundry
Galley Samsung microwave (new)
AEG 6-burner stove
Lux extractor
Rex oven
2 x freezer compartments
1 x fridge compartment
Rex fridge and freezer
Dihr dishwasher (new)
Trash compactor
2 x stainless sink, stainless work surfaces

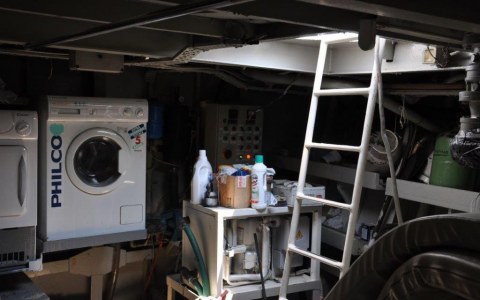

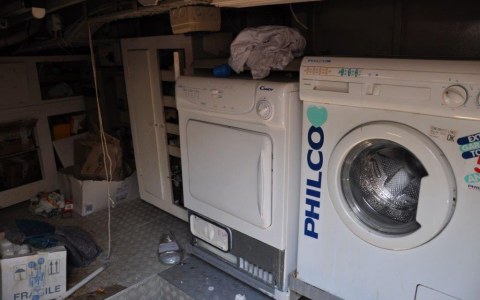

Laundry Philco washer (new) and Candy dryer
Other Domestic Equipment Large Philips deep freezer in aft storage compartment
Tenders
1 x Stinger 5.50-meter RIB with Mercury 75hp outboard engine
1 x Lomac 4-meter RIB with Mercury 25hp outboard engine
More informations?
PHOTO GALLERY
resized_codecasa 079

resized_codecasa 078

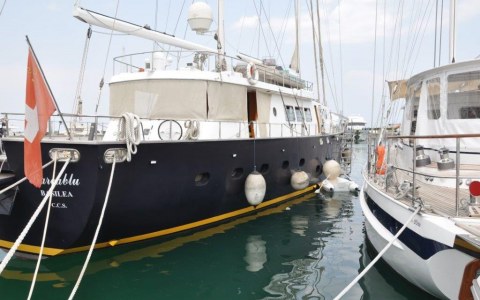

resized_codecasa 076

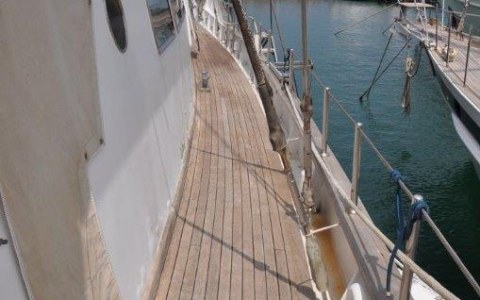

resized_codecasa 074

resized_codecasa 073

resized_codecasa 072

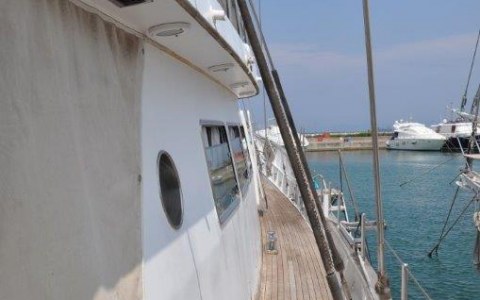

resized_codecasa 071

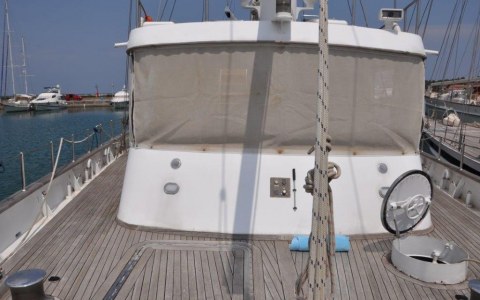

resized_codecasa 070

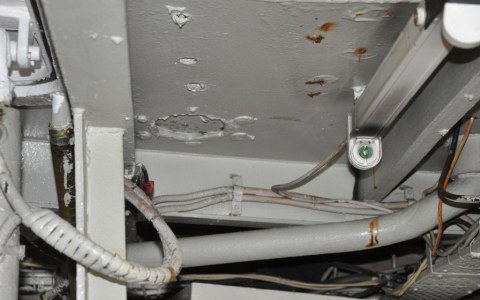

resized_codecasa 069

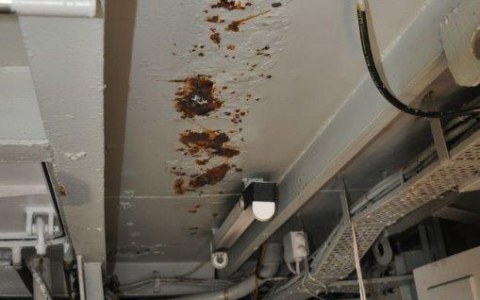

resized_codecasa 068

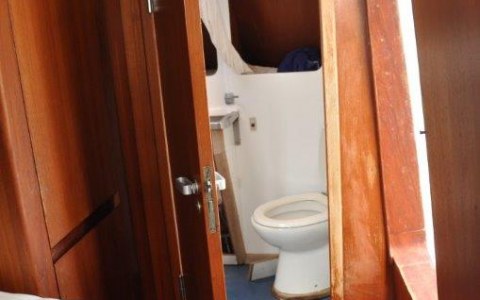

resized_codecasa 067

resized_codecasa 066

resized_codecasa 065

resized_codecasa 064

resized_codecasa 063

resized_codecasa 062

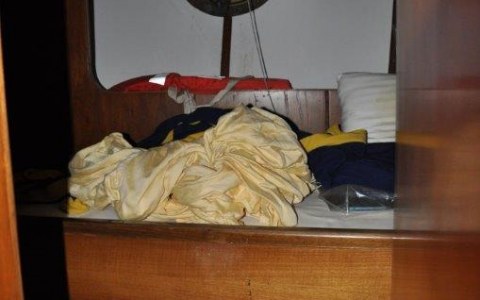

resized_codecasa 061

resized_codecasa 060

resized_codecasa 059

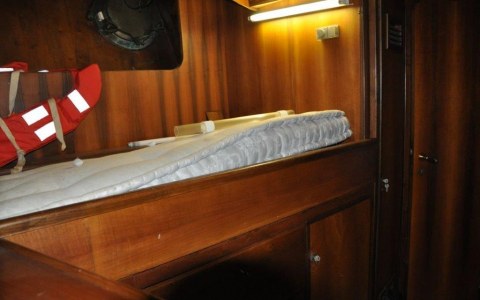

resized_codecasa 058

resized_codecasa 057

resized_codecasa 056

resized_codecasa 055

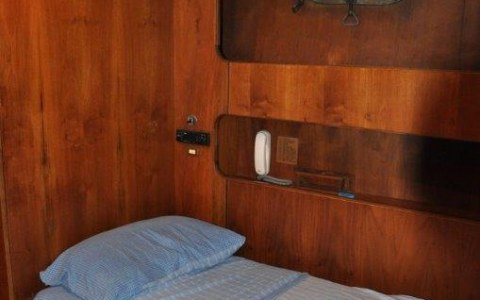

resized_codecasa 054

resized_codecasa 053

resized_codecasa 052

resized_codecasa 051

resized_codecasa 050

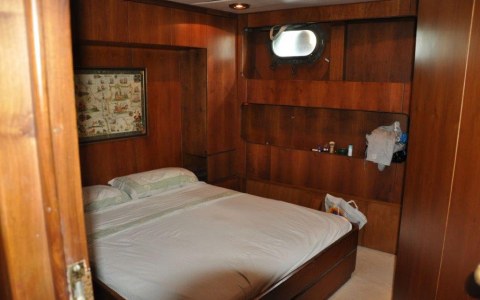

resized_codecasa 049

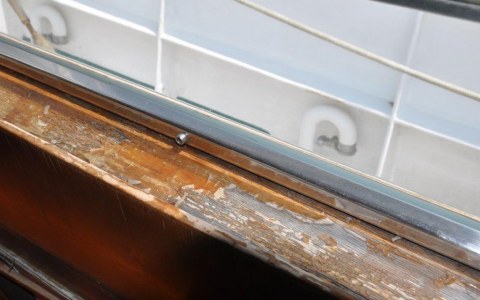

resized_codecasa 048

resized_codecasa 047

resized_codecasa 046

resized_codecasa 045

resized_codecasa 044

resized_codecasa 043

resized_codecasa 042

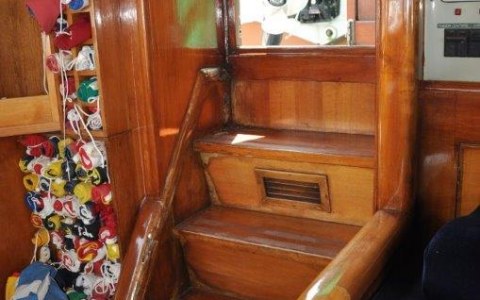

resized_codecasa 041

resized_codecasa 040

resized_codecasa 039

resized_codecasa 038

resized_codecasa 037

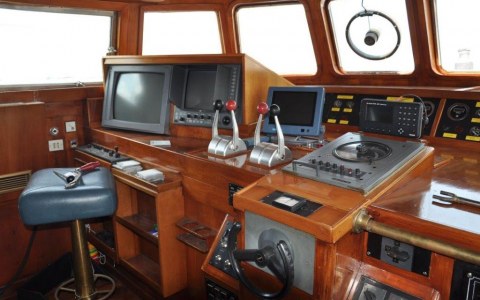

resized_codecasa 036

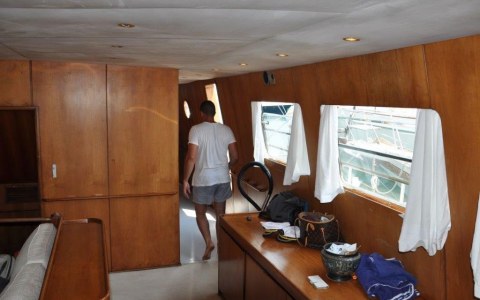

resized_codecasa 035

resized_codecasa 034

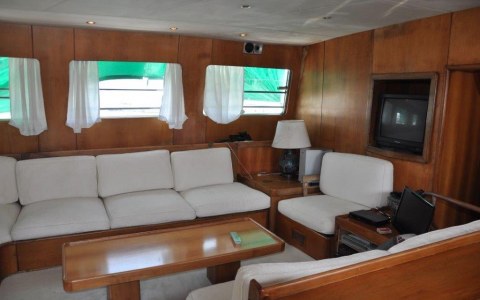

resized_codecasa 033

resized_codecasa 032

resized_codecasa 031

resized_codecasa 030

resized_codecasa 029

resized_codecasa 028

resized_codecasa 027

resized_codecasa 026

resized_codecasa 025

resized_codecasa 024

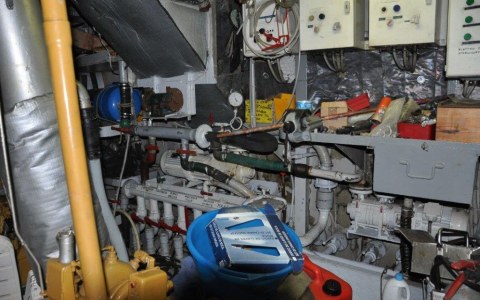

resized_codecasa 023

resized_codecasa 022

resized_codecasa 021

resized_codecasa 020

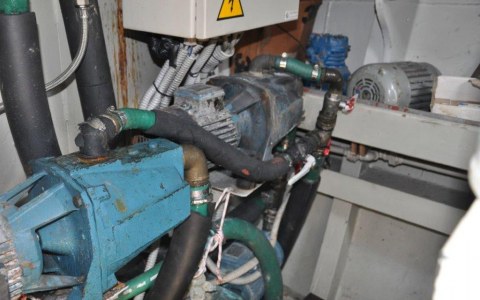

resized_codecasa 019

resized_codecasa 018

resized_codecasa 017

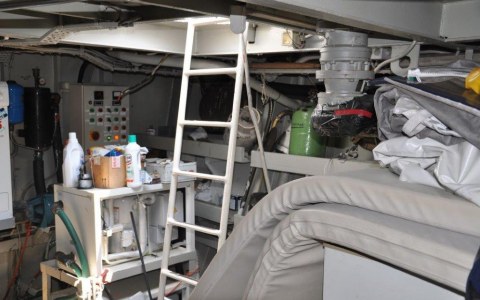

resized_codecasa 016

resized_codecasa 015

resized_codecasa 014

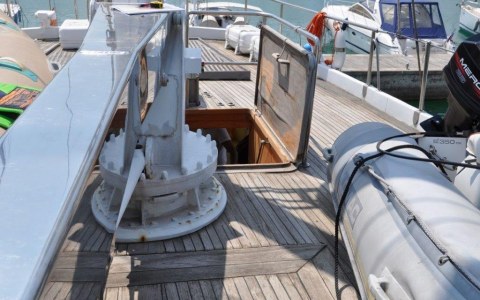

resized_codecasa 013

resized_codecasa 012

resized_codecasa 010

resized_codecasa 009

resized_codecasa 008

resized_codecasa 007

resized_codecasa 006

resized_codecasa 005

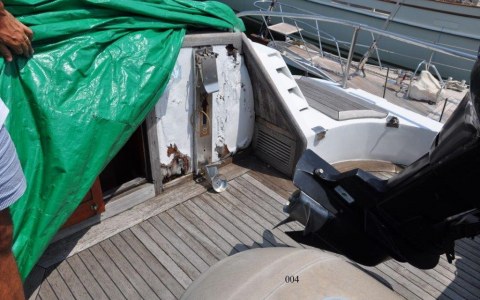

resized_codecasa 004
